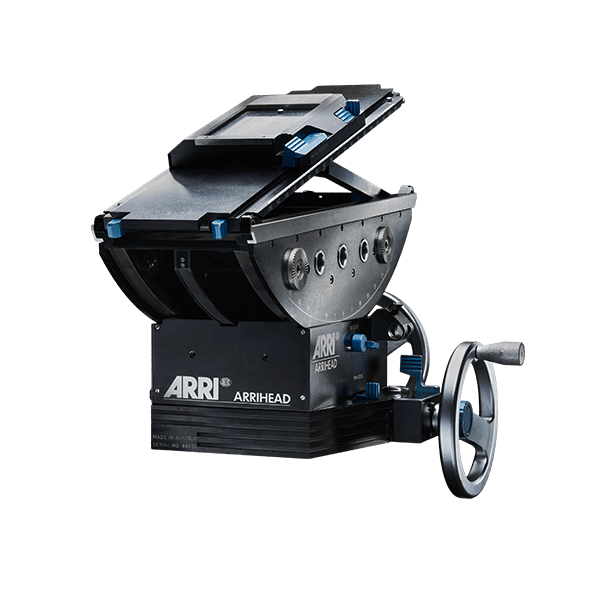

ARRIHEAD
The ARRIHEAD is a compact geared head designed for current film and digital cameras, with a tilt axis centered on the camera’s optical center.
- Mitchel Mount
- Tilt angle: +-30 degrees, +-90 degrees with tilt plate
- Tilt plate increments: 13,20,25,30,40,50,60 degrees
- Camera mounting: touch and go system (quick release)
- 180mm forward and back Arri bridgeplate (dovetail)
- Pan/tilt drive: Tilt handle laterally adjusts up to 38 degrees to right 3-speed gear drive, plus neutral wheels with fast-pin removable knob
- Dimensions (w/out wheels): height 12 inches, length 20 inches, width 11 inches
