TecH Specs
| Panel Type | Size | Resolution | Contrast Ratio | Color Depth | Refresh Rate |
|---|---|---|---|---|---|
| IPS LCD | 7.1 inch | 1920 × 1200 | 1000:1 | 10-bit (processing) | 48 – 60 Hz (synced to input) |

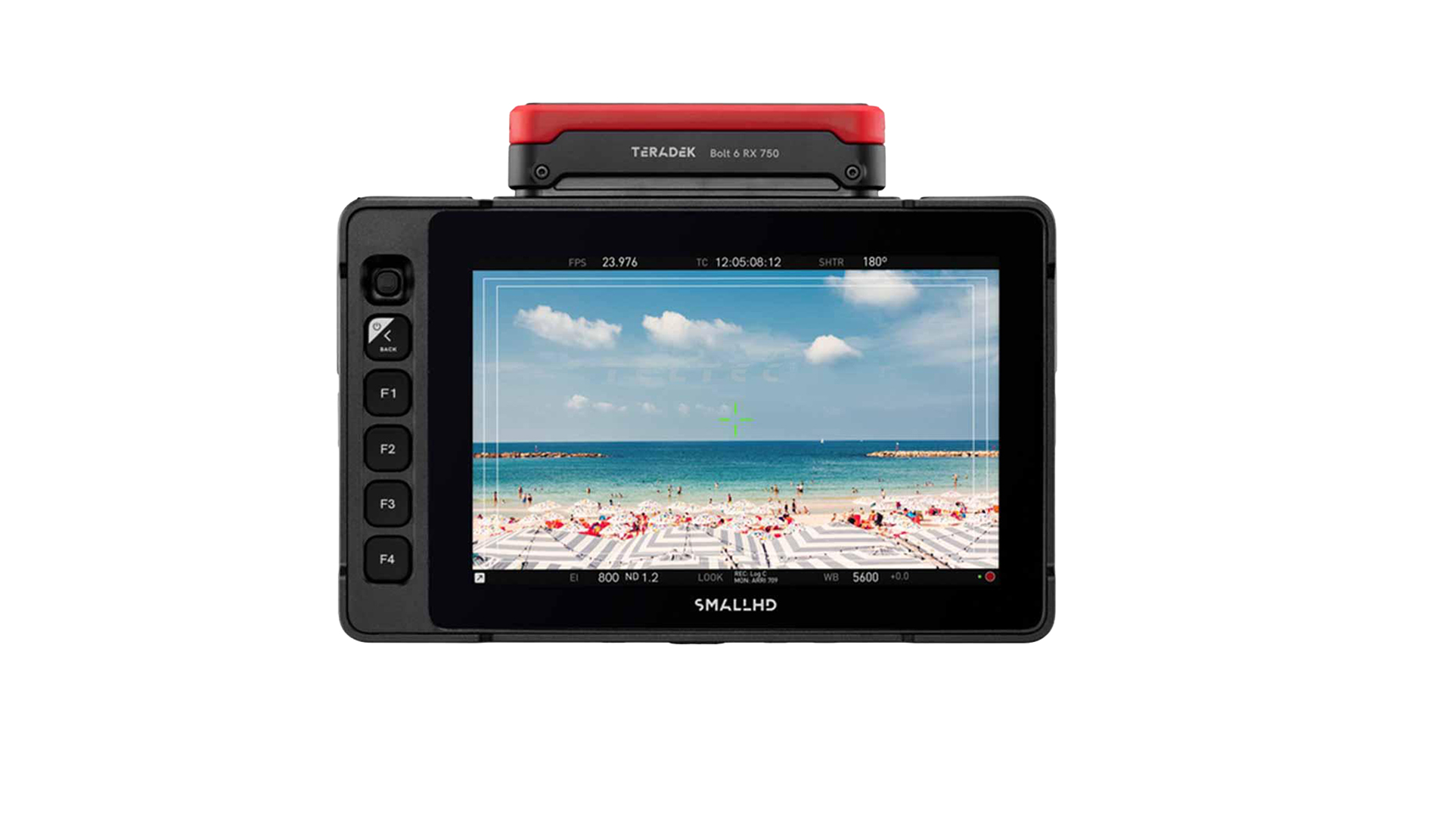

The SmallHD Ultra 7 Bolt 6 TX 750 is a 7” touchscreen monitor built for demanding on-set environments. With a 2300-nit ultra-bright display and a 1920 × 1200 resolution, it delivers a crisp and vivid image even under direct sunlight.
Equipped with 6G-SDI and HDMI ports, the Ultra 7 handles 4K video signals with ease. A joystick and customizable function buttons offer flexible control, while PageOS provides a powerful toolkit for focus, exposure, and LUT workflows.
Designed for reliability, the Ultra 7 features an IP53-rated housing for protection against dust and light rain. Power options include V-Mount micro battery plates, making it easy to adapt to any rig setup.
This TX 750 version integrates a Teradek Bolt 6 transmitter for wireless video transmission up to 225 m, operating across the 6 GHz spectrum with full backward compatibility to Bolt 4K systems on 5 GHz. The internal antenna keeps the setup compact and production
