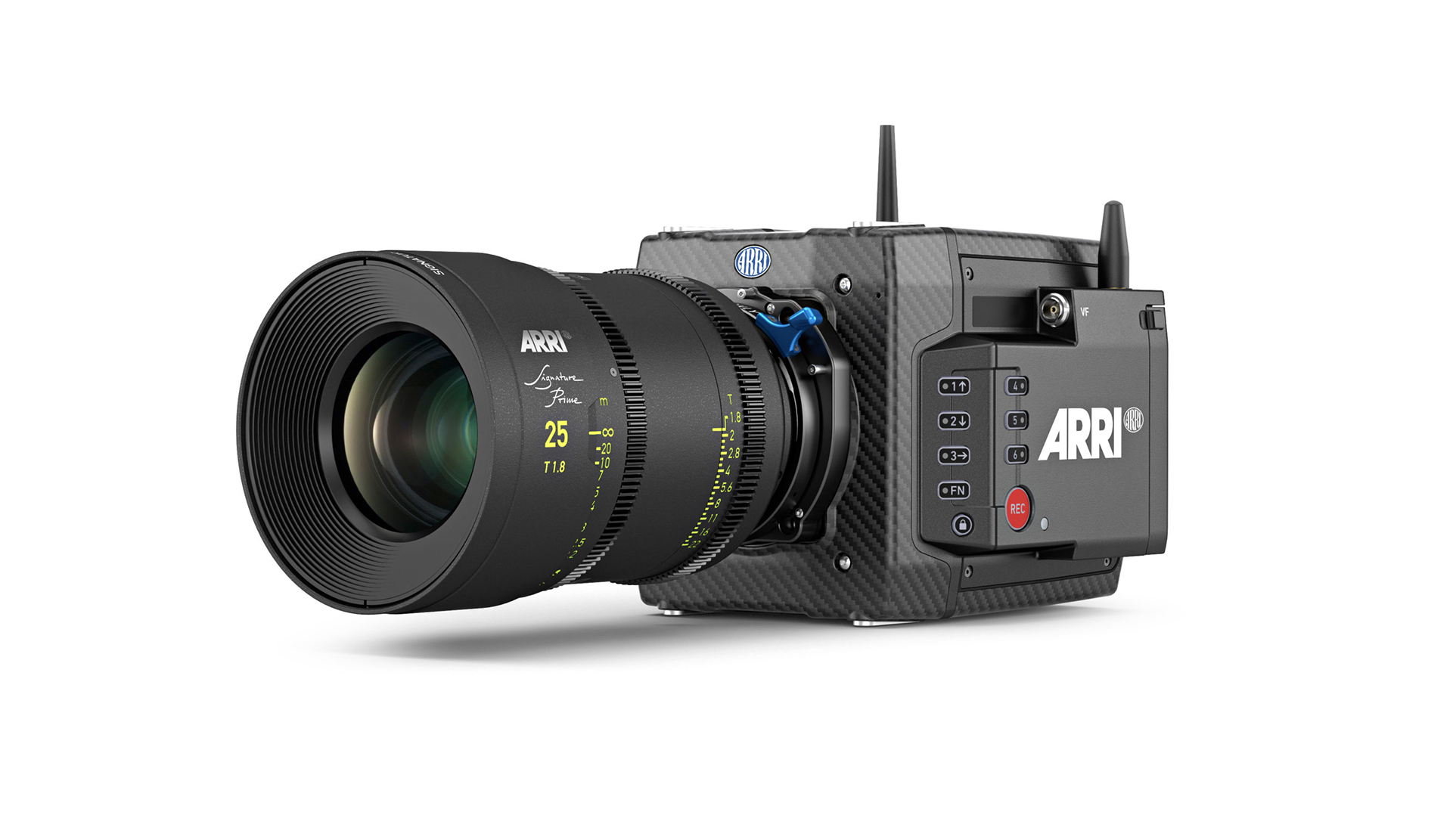

ARRI Alexa Mini LF

Embraced by the world’s leading filmmakers as soon as it was announced, the ALEXA Mini LF is ARRI’s flagship large-format camera. Versatile and adaptable due to its compact size, low weight, and multiple recording formats, the Mini LF offers the best overall image quality for large format and an exciting new REVEAL Color Science post workflow.

Key Features
  • 4.5K LF sensor
  • 14+ Stops dynamic range
  • EI 160 to EI 3200 at EI 800 Base
  • Internal ND 0.6 / 1.2 / 1.8
  • Apple ProRes and ARRIRAW Recording
  • Up to 100fps
  • Bodyweight 2.6kg
Technical Specs
  • ProRes S35 16:9 HD: 1920 x 1080 | 100 fps
  • ProRes S35 4:3 2.8K: 2880 x 2160 | 75 fps
  • ProRes S35 16:9 3.2K: 3200 x 1800 | 75 fps
  • ProRes LF 16:9 HD: 1920 x 1080 | 90 fps
  • ProRes LF 16:9 2K: 2048 x 1152 | 90 fps
  • ProRes LF 16:9 UHD: 3840 x 2160 | 60 fps
  • ProRes LF 2.39:1 4.5K: 4448 x 1856 | 60 fps
  • ProRes LF 3:2 Open Gate 4.5K: 4448 x 3096 | 40 fps
  • ARRIRAW S35 3:2: 3424 x 2202 | 60 fps
  • ARRIRAW LF 1:1: 2880 x 2880 | 60 fps
  • ARRIRAW LF 16:9: 3840 x 2160 | 60 fps
  • ARRIRAW LF 2.39:1: 4448 x 1856 | 60 fps
  • ARRIRAW LF 3:2 Open Gate: 4448 x 3096 | 40 fps
Connections

1x Viewfinder-Out
2x SDI-Out
1x 4p Lemo LBUS
1x 3p Fisher 24V Out
1x 2p Lemo 12V Out
1x 10p Lemo ETH
1x 7p Lemo EXT
1x 5p Lemo TC-In/Out
1x BNC Sync-In
1x 6p Lemo Audio-In
1x 8p Lemo feed
