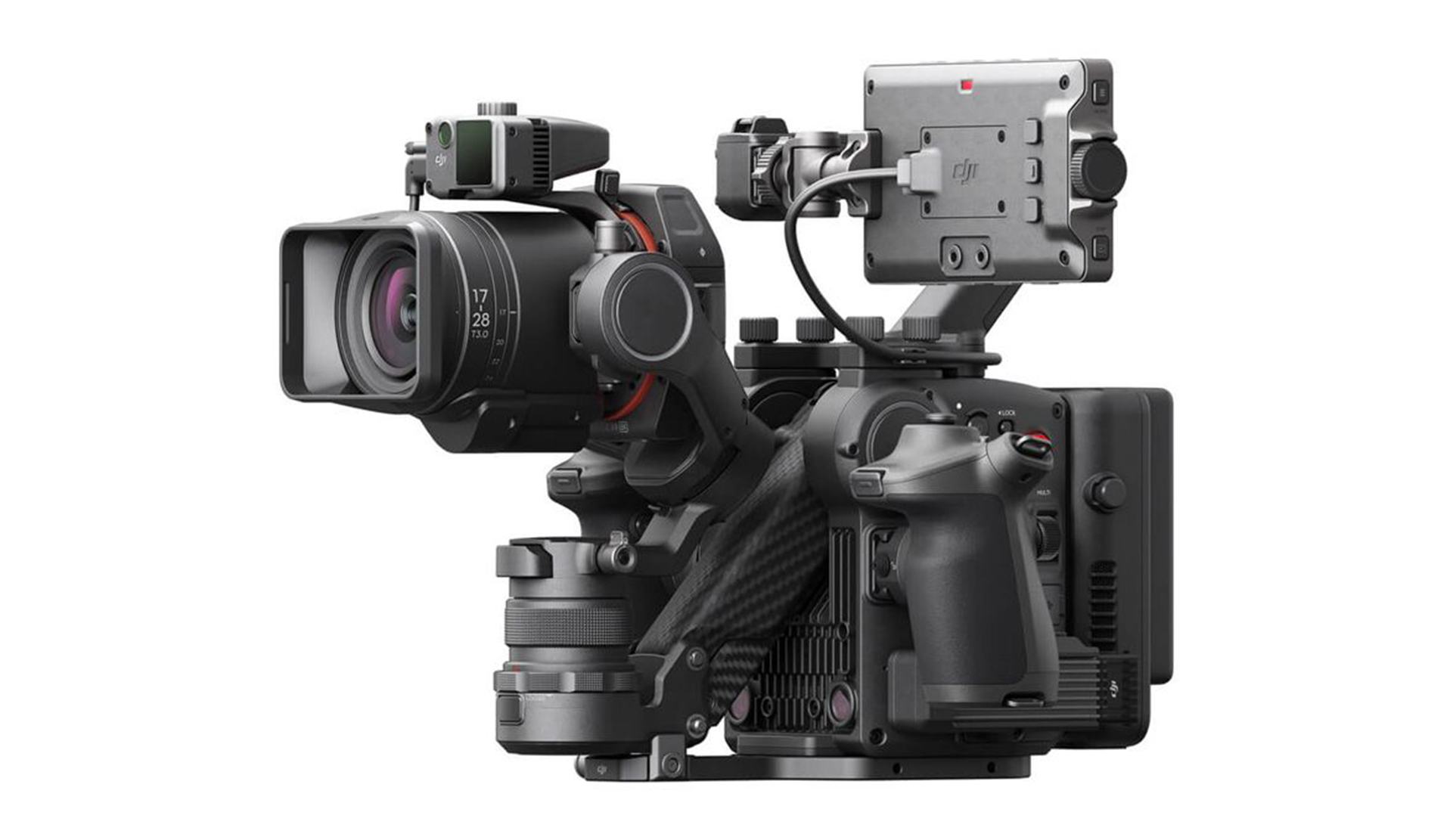

DJI Ronin 4D 8K
The DJI Ronin 4D 8K is an all in one cinema camera system designed for commercials, documentaries, music videos and fast moving productions that benefit from a highly integrated setup. Available for rental in Berlin, it combines a full frame 8K camera, 4 axis stabilization, LiDAR focusing and wireless video transmission in a single compact system. DJI describes the Ronin 4D 8K as a modular full frame gimbal camera with internal ProRes recording, 4 axis stabilization and LiDAR focusing.
At the heart of the system is DJI’s Zenmuse X9 8K full frame camera, which supports internal recording formats including Apple ProRes RAW and can record up to 8K internally. Together with the built in 4 axis stabilization and LiDAR based focusing system, this makes the Ronin 4D 8K especially useful for productions that want cinematic image quality with a faster and more mobile workflow than a traditional camera and gimbal setup.
Compared to more conventional cinema camera builds, the Ronin 4D 8K is less about maximum modularity and more about speed, efficiency and integration. It is particularly well suited to handheld work, moving shots, tight shooting environments and productions that need a stabilised camera package with minimal setup time. At the same time, support for interchangeable lens mounts and wireless monitoring makes it flexible enough for a wide range of professional on set workflows. DJI lists support for multiple mounts including DL, L, M, E and third party PL options.
Key Features
4-axis stabilisation system
14+ Stops Dynamic Range
ISO Base 800 & 5000
Built-in LiDAR focusing and waveform assistance
Bodyweight 4,67kg
Recording Formats
- ProRes RAW 8K: 8192 x 4320 | 24 / 25 / 30 fps
- ProRes RAW 6K: 6016 x 3160 | 24 / 25 / 30 / 48 / 50 / 60 fps
- ProRes 422 HQ 8K: 8192 x 4320 | 24 / 25 / 30 fps
- ProRes 422 8K: 8192 x 4320 | 24 / 25 / 30 fps
- ProRes 422 LT 8K: 8192 x 4320 | 24 / 25 / 30 fps
- ProRes 422 HQ 4K: 4096 x 2160 | 24 / 25 / 30 / 48 / 50 / 60 / 120 fps
Connections
- 1 × HDMI Type A Output
- 1 × USB-C Port (USB 3.1/3.2 Data Input/Output)
- 1 × Barrel Power Input (DC 12-30 V)
- 1 × 3.5 mm TRS Stereo Mic/Line Input
- 1 × 3.5 mm TRS Stereo Headphone Output
- 1 × CFexpress Type B Card Slot (Recording Media)
